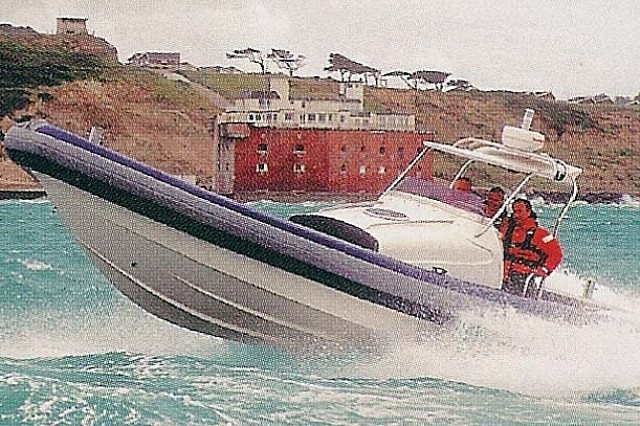

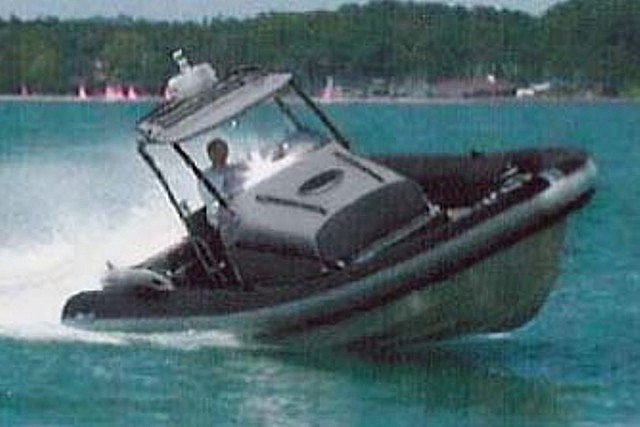

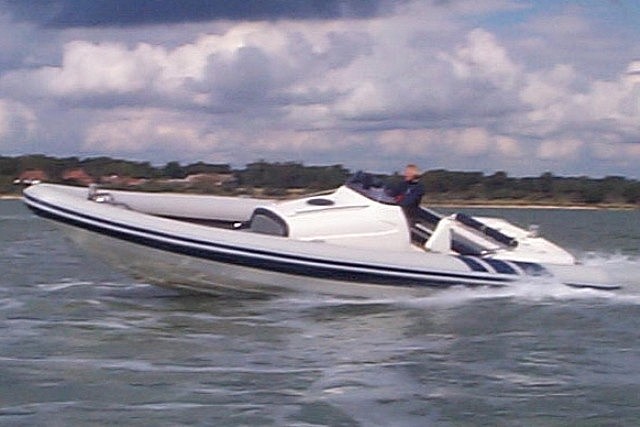

Based on Cougar’s race breed & proven US1 series deep V designs the C-Series offers an unrivalled blend of exceptional performance and sea keeping.
C-Series Ribs can be supplied in a standard configuration or fully tailored to suit your every requirement, numerous deck and engine layouts are available
The C-Series Ribs can be offered in sizes 9.5 to 11 metres, developed from Cougar's successful US1 series sportsboat this deep V hull shape offers exceptional handling and ride in all conditions
|
|
C10
|
C11
|
C12
|
|
Overall Length
|
10.00m
|
11.00m
|
12.00m
|
|
Overall Beam
|
3.45m
|
3.45m
|
3.45m
|
|
Tube Diamater
|
.550/.600m
|
.600m
|
.600m
|
|
Outboard
|
Twin
|
Twin or Triple
|
Twin or Triple
|
|
Inboard
|
Single or Twin
|
Twin
|
Twin
|
|
RCD/CE rating
|
Catagory B (14-People)
|
Catagory B (14-People)
|
Catagory B (14-People)
|
Construction
-
Hand laid glass cloths with a high performance vinylester resin incorporating.
-
White gelcoat as standard.
-
Structural foam longitudinal stiffening stringers.
-
Structural foam transom knees.
-
Structural foam bulkheads.
Inflatable Tubes
-
Manufactured from a heavy-duty 1200gsm hypalon fabric with seven separate compartments.
-
Tube colours to requirements.
-
550mm diameter tubes tapered towards bow.
-
Collar is glued to boat’s structure.
-
Special striping available upon request.
-
Heavy-duty rubbing strip.
-
Spring cleats.
-
Wear patches.
Cockpit
-
Fully lined FRP moulded cockpit liner.
-
Moulded console containing a toilet & shower compartment.
-
Twin bolster helm position seats with electric hinging seat bases.
-
Wet bar containing: fridge and sink.
-
Rear bench seat.
-
Rear sun-bed (inboard version only)
-
Forward sun-bed and seating area with table
-
Plentifully storage lockers
-
Moulded rear stern platform
CONSOLE/TOILET COMPARTMENT
-
Access via a hinged hatch in the front of the cockpit
-
A marine electric toilet
-
Side sink with pull out shower head
RIGGING
-
Hydraulic steering system.
-
Stainless Steel fuel cell tanks with shut off valve.
-
Large capacity water/fuel separator.
-
Electric 2000GPH auto bilge pump.
-
Gel filled batteries & shut off switches.
-
Navigation lights.
-
Recessed flush fuel fill.
-
Recessed flush fuel vent.
-
Recessed flush mooring/lift eye cleats.
-
Bow and stern eyes.
Engine Options
-
C10 Single or Twin diesel inboard
-
C10 Twin or Triple outboards
-
C11 Twin Inboards
-
C11 Twin or Triple outboards
-
C1 2Twin Inboards
-
C12 Twin or Triple Outboards
